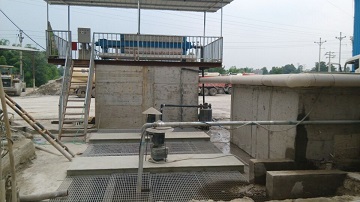

砂石分离机和压滤机配套使用-搅拌站污水
我公司提供各种型号的厢式和板框式机械压滤机、液压压滤机、隔膜压滤机、快开式压滤机、全自动压滤机以及压滤机配件，质量可靠，规格齐全。
1、 滤板规格有：320型、450型、630型、800型、870型、1000型、1250型、1500型、2000型等。
2、 过滤面积最大到2000㎡。
3、 滤板材质分铸铁、不锈钢、增强聚丙烯，玻纤聚丙烯等。
4、 液流形式有明流、暗流、可洗、不可洗、中进料、角进料等多种形式。
5、 滤板压紧方式有：手动螺旋压紧、电动机械压紧和液压油缸压紧。对于特殊要求的压滤机可另行商定解决。
Our company supplies various types of recessed plate and plate-frame mechanical filter press, hydraulic filter press, membrane filter press, quick open filter press, full-automatic filter press and filter press spare parts.
1、 Filter plate specification include: 320mm, 450mm, 630mm, 800mm, 870mm, 1000mm, 1250mm, 1500mm and 2000mm etc.
2、 Filtration area up to 2000㎡
3、 Filter plate materials: cast iron, stainless steel, reinforced polypropylene, glass fiber polypropylene etc.
4、 Flow forms: open flow, close flow, washable, non-washable, middle feeding and corner feeding etc.
5、 Filter plate pressing modes: manual screw pressing, electric mechanic pressing and hydraulic cylinder pressing, Special filter press can be made on request.
加型号说明图
|
型号 Type |
过滤面积 Filter area (m2) |
滤板尺寸 Filter plate size (mm) |
滤饼厚度 Filter cake thickness (mm) |
滤室容积Filter chamber volume (L) |
滤板数量 Filter plate number (PCS) |
过滤压力 Filtrating pressure (MPa) |
电机功率Motor power (KW)
|
整机重量 Weight (Kg) |
外形尺寸 Dimension (mm) (L×W×H) |
|
XZ30/870-30U |
30 |
870×870 |
30 |
460 |
23 |
0.6 |
2.2 |
3046 |
3180×1200×1300 |
|
XZ40/870-30U |
40 |
595 |
30 |
3593 |
3570×1200×1300 |
||||
|
XZ50/870-30U |
50 |
748 |
38 |
4057 |
4110×1200×1300 |
||||
|
XZ60/870-30U |
60 |
902 |
46 |
4597 |
4550×1200×1300 |
||||
|
XZ70/870-30U |
70 |
1056 |
54 |
5136 |
4990×1200×1300 |
||||
|
XZ80/870-30U |
80 |
1210 |
62 |
5636 |
5430×1200×1300 |
||||
|
XZ50/1000-30U |
50 |
1000×1000 |
752 |
28 |
0.6 |
4.0 |
4128 |
4040×1500×1400 |
|
|
XZ60/1000-30U |
60 |
914 |
34 |
4636 |
4460×1500×1400 |
||||
|
XZ70/1000-30U |
70 |
1063 |
40 |
5143 |
4760×1500×1400 |
||||
|
XZ80/1000-30U |
80 |
1219 |
46 |
5651 |
5120×1500×1400 |
||||
|
XZ100/1000-30U |
100 |
1505 |
57 |
6628 |
5870×1500×1400 |
||||
|
XZ120/1000-30U |
120 |
1816 |
69 |
7644 |
6500×1500×1400 |
